Dual-Station AC Type 2 & DC CCS2 Charging Gun Comprehensive Testing System

Dual-Station AC Type 2 & DC CCS2 Charging Gun Comprehensive Testing System

Nombre De La Marca:	Sinuo
Número De Modelo:	SNQC-CDQ08H
Cuota De Producción:	1
Precio:	Customized
Condiciones De Pago:	T/T
Capacidad De Suministro:	10 juegos por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

Calibration Certificate (Cost Additional)

Fuente de alimentación:

Monofásico CA 220V / 50Hz

Sistema de control:

PLC + computadora industrial

Estaciones de prueba:

2 estaciones

Tiempo del ciclo de ensayo:

Aprox. 30 segundos por muestra

Presión de la fuente de aire:

0,6 MPa

Combinaciones de pruebas admitidas:

CC+CC, CA+CA, CC+CA, CA+CC

Detalles de empaquetado:

madera contrachapada

Capacidad de la fuente:

10 juegos por mes

Resaltar:

Dual-Station AC Type 2 charging gun tester

DC CCS2 charging gun testing system

EV charging gun comprehensive test equipment

Descripción del producto

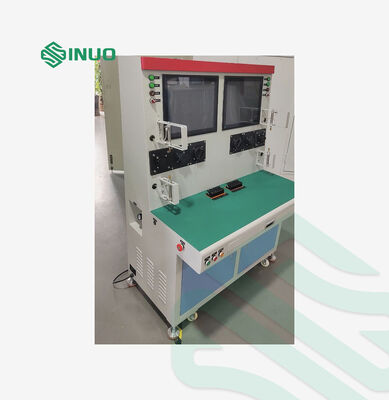

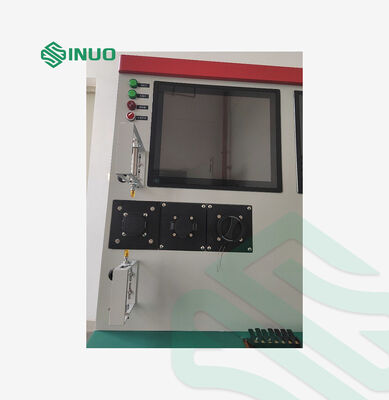

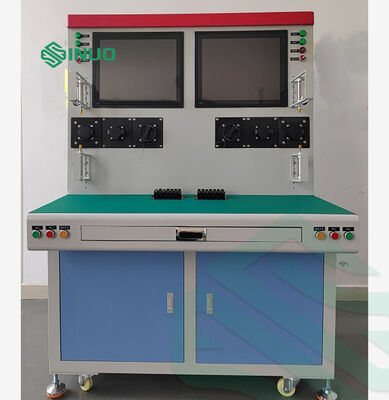

Dual-Station AC Type 2 & DC CCS2 Charging Gun Comprehensive Testing System

Product Information:

This test system is designed for the functional inspection of AC Type 2 and DC CCS2 charging connector cable assemblies. Each charging connector can be assigned a unique QR code, and all test results are automatically saved into reports for full traceability.

The system performs all required tests automatically in a single cycle, significantly improving efficiency and reducing labor requirements. It is especially suitable for 100% inspection in mass production environments.

Test Functions:

• Open circuit, continuity, short circuit, and wire sequence misalignment test for each wire

• Main conductor continuity resistance test

• Built-in resistor test (including both button-pressed and button-released conditions)

• Insulation resistance test between conductors

• Withstand voltage test between conductors

• Thermocouple wire test

Technical Parameters:

Basic Operating Conditions
Main Power Supply	Single-phase AC 220V/50Hz
Air Source Pressure	0.6 MPa
Control System	PLC + Industrial Computer
Test Stations	2 stations
Total Interfaces	2×AC Type 2 sockets + 2×DC CCS2 sockets
Supported Test Combinations	DC+DC, AC+AC, DC+AC, AC+DC
Single Test Cycle Time	Approx.30 seconds per sample

Core Electrical Test Parameters
Open/Short Circuit & Wire Sequence Test	Detected by PLC I/O; automatic pass/fail judgment
Main Conductor Continuity Resistance	Test points: L1, L2, L3, N, PE, CP
Built-in Resistor Test	Range: 1 ~ 5000Ω; Accuracy: ±1% 16A AC gun: Unpressed=680Ω, Pressed=3.38kΩ 32A AC gun: Unpressed=220Ω, Pressed=3.52kΩ 63A AC gun: Unpressed=100Ω, Pressed=3.4kΩ Overall accuracy: ±1% ~ ±2%
Thermistor/Thermocouple Wire Test	Range: 100 ~ 50000Ω; Accuracy: ±2% Upper & lower limit judgment available
Insulation Resistance Test	Test objects: Single-phase / Three-phase / DC circuits Test Voltage: DC 100 ~ 1000V (adjustable) Resistance Lower Limit: 1MΩ ~ 1GΩ (adjustable) Accuracy: ±5% Auto alarm when resistance below set value
Withstand Voltage Test	Test objects: Single-phase / Three-phase / DC circuits Test Voltage: AC 0~5kV / DC 0~6kV (adjustable) Leakage Current: AC 0.1~20mA; DC 0.01~5mA (adjustable) Accuracy: ±1.5% + 3 digits Programmable voltage control; alarm for over current
Plug Insertion & Extraction Force Test	Range: 0 ~ 500N; Resolution: 0.1N; Accuracy: ±1% Data auto-saved to reports

Mechanical & Appearance Parameters
Table Height	Approx. 800 mm (Ergonomic design)
Overall Dimension (W×D×H)	1000mm × 800mm × 1800mm
Total Weight	Approx. 300 kg
Mobile Structure	Equipped with lockable universal casters
Fixture	Custom clamping fixtures for charging guns

Data Acquisition & Output Functions
Identification Device	2 sets of barcode scanners; support barcode & QR code scanning Test data bound with codes for full traceability
Printing Function	2 compact printers (one per station) Auto print labels for passed products only (serial No., rating, time, status, etc.)
Data Storage	Real-time storage of all test records
Data Export Format	TXT/EXCEL
MES Connection	Reserved communication interface for MES system docking & data upload
