EV Battery Testing Equipment with 300kN Pressure Range and Box-Type Structure for SAE J2464 Compliant Crush and Nail Penetration Tests

EV Battery Testing Equipment with 300kN Pressure Range and Box-Type Structure for SAE J2464 Compliant Crush and Nail Penetration Tests

Nombre De La Marca:	Sinuo
Número De Modelo:	SN554B-30T
Cuota De Producción:	1
Precio:	Customized
Condiciones De Pago:	T/T
Capacidad De Suministro:	1 juegos/mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

Calibration Certificate (Cost Additional)

Tamaño de la batería:

300*300*250mm

Peso de la batería:

18kg-30kg

Espacio de prueba:

1000 × 1000 × 1000 mm (W * D * H)

Dimensiones del equipo:

1200×1500×1850mm

Velocidad de acupuntura de aplastamiento:

0,1-83 mm/s (ajustable)

Estructura del equipo:

Estructura tipo caja

Rango de presión:

1~300kN

desplazamiento:

0 ̊ 300 mm

Detalles de empaquetado:

Otro

Capacidad de la fuente:

1 juegos/mes

Resaltar:

300kN Pressure Range EV Battery Testing Equipment

Box-Type Structure Battery Crush Test Chamber

SAE J2464 Compliant Nail Penetration Test Chamber

Descripción del producto

EV Battery Testing Equipment for Battery Crush and Nail Penetration 300kN

Advanced testing equipment designed for comprehensive EV battery safety evaluation, featuring crush and nail penetration testing capabilities with 300kN maximum force.

Compliance Standards

Conforms to SAE J2464 Standard (Clause 4.3.3.1: Penetration Test; Clause 4.3.6.1: Crush Test), AIS 038 crush test in page no. 79 of 106 cl.no. 3.2, Nail penetration test in page no. 101 of 106 cl.no. 3.3.2 (a), IEC62133-2012, ISO 12405-4:2018, and other relevant standards.

Equipment Overview

Voltage acquisition function automatically collects battery voltage changes during testing and stops when voltage reaches zero
Flexible testing modes: pressure, deformation, and voltage control with customizable stopping conditions
Real-time monitoring and display of test speed, force, displacement, temperature, and voltage

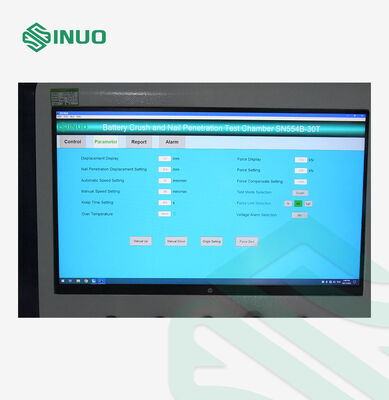

Windows-based computer operating system with comprehensive data recording, saving, comparison, and tracking functions
Dedicated test control motherboard for simultaneous recording of force, displacement, and voltage
Multiple test condition combinations with automatic stopping when any set condition is met
Real-time data export and report generation capabilities
Voltage signal control for precise test termination

Technical Specifications

User Battery Cell Size	Maximum size: 300300250mm, Weight: 18kg-30kg
Test Space	100010001000mm (width * depth * height)
Dimensions	120015001850mm (width * depth * height, subject to actual design)

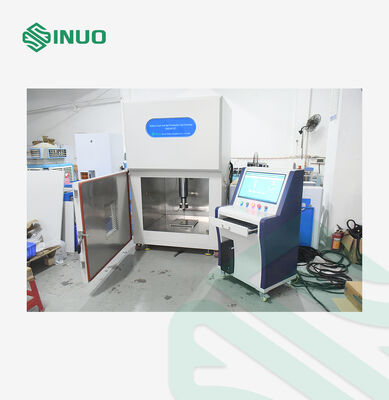

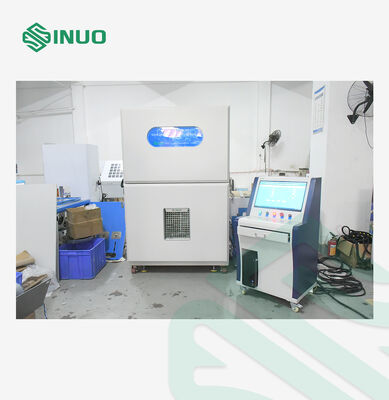

Equipment Structure	Box-type structure
Control Method	Remote computer control, distance ≥10m
Drive Method	Servo Motor + Electric cylinder drive
Pressure Range	1～300kN, sensor maximum range 306kN
Pressure Accuracy	±1% FS
Crush/Acupuncture Speed	0.1-83mm/s (adjustable)
Displacement	0～300mm
Steel Needle Specifications	Sizes: Φ3mm, Φ4mm, Φ5mm, Φ6mm, Φ8mm, Φ20mm Length: 200mm Material: Heat Treated Steel Angle: 45°-60° Quantity: 2 each

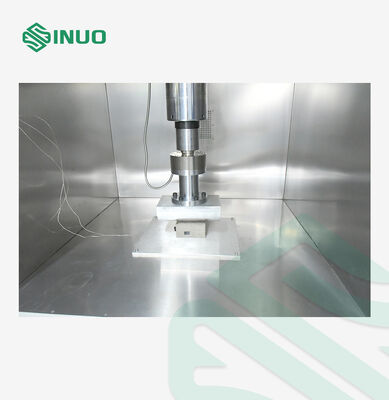

Crush Head Options	R75250mm semi-cylinder, 2R75250mm semi-cylinder, and flat crush head

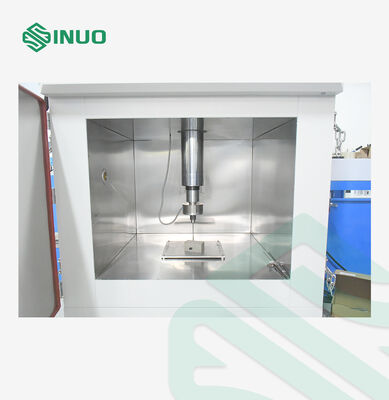

Needle Fixture
Temperature Acquisition	Range: 0-1000℃, Resolution: 0.1℃, Accuracy: ±0.5℃, 2 channels
Voltage Acquisition	Range: 0-100V, Accuracy: ≤±0.5% FS, Resolution: 10mV, 1 channel
Power Requirements	25KW, 380V power supply
Weight	Approximately 800kg
